Pool Wood Ubbink Océa 510 H120 Liner Blue

Pool Wood Ubbink Azura 510 H120 Liner Beige.

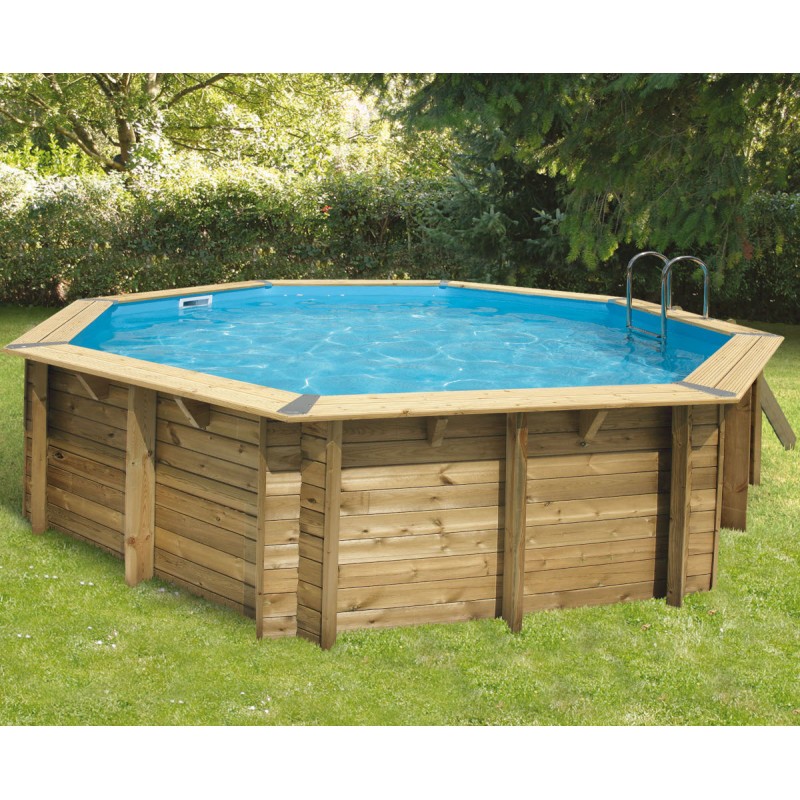

Wooden pool Ubbink Océa 510 octagonal. Delivered in a complete kit including structure and filtration.

Ubbink has been a pool manufacturer since 1970.
By choosing a swimming pool from the Ubbink brand, you are investing sustainably in a space of well-being, conviviality and happiness for your garden. All above-ground wooden pools are designed with robust and quality materials, designed to meet the needs of young and old, able to withstand time and bad weather.
Particularly keen to support pool owners at every stage, Ubbink offers a range of ancillary services including assembly assistance, comprehensive warranties and a responsive and efficient service.

Ubbink ensures the long-term availability of products, accessories and spare parts; a constant maintenance of delivery as well as a perfect knowledge of the products and their specificities to advise you at best. This ensures that you speak with a qualified and competent professional.
The Océa Ubbink range offers quick and simple to install models with perfect dimensions for small gardens while respecting small budgets. Available in different shapes and heights, you will undoubtedly find the model best suited to your needs and those of the whole family.
The Océa 510 cm model is one of the star models of this range with a swimming area of 15 m², ideal for installation in a small garden. Delivered as a complete kit including structure, liner and filtration, it is ready to be installed. With a height of 120 cm, the Océa 510 cm wooden pool is perfect for young and old to swim with pleasure under the supervision of an adult.

Technical characteristics of the Ubbink Wooden Pool 510 cm Octagonal

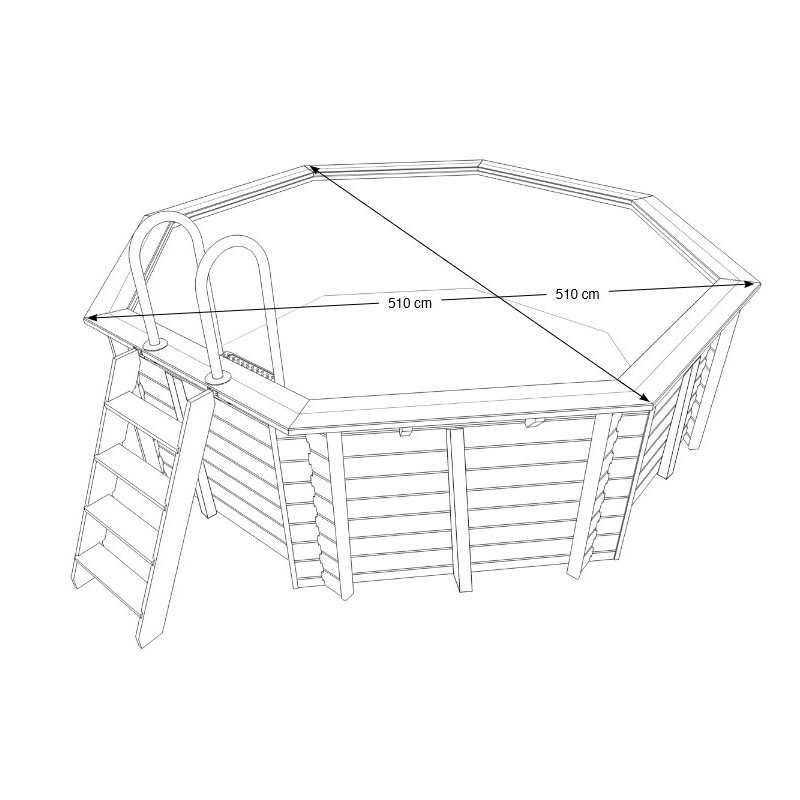

• External dimensions: 510 cm
• Interior dimensions: 460 cm
• Surface area required on the ground: cm

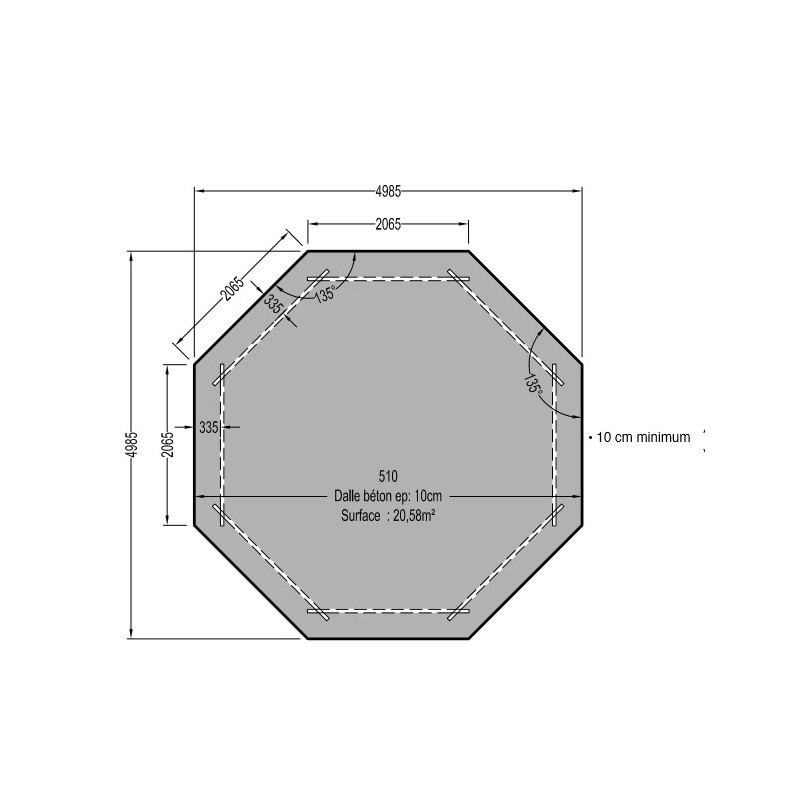

• Regarding the dimensions of the concrete slab, please refer to the instructions.
• Height: 120 cm
• Useful water height: 112 cm
• Water volume: 15.7 m3
• Swimming area: 15 m²

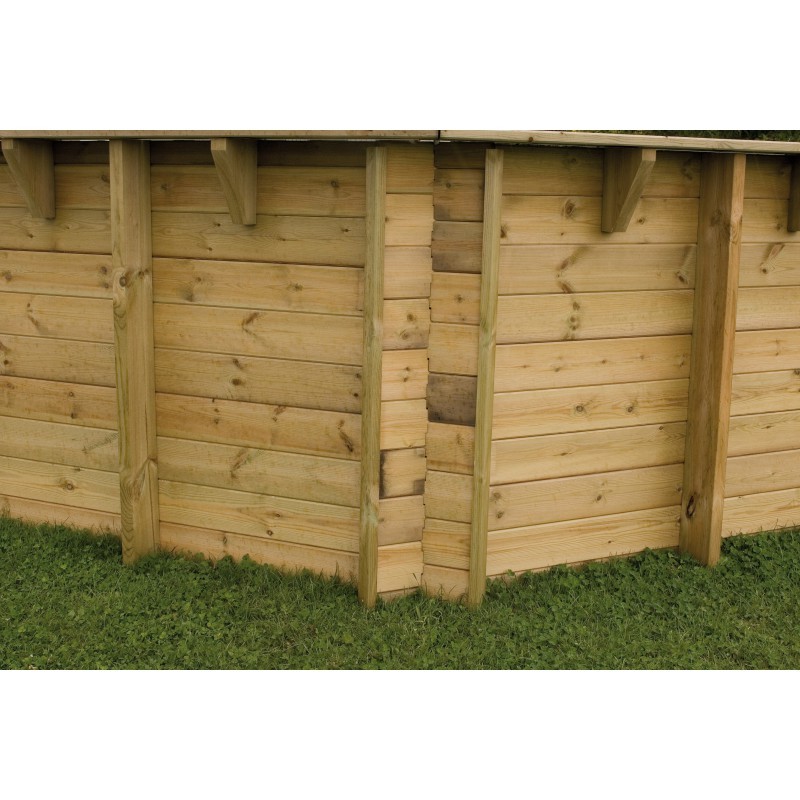

• Pine structure from northern European forests (FSC)
• Treated wood with class IV autoclave treatment
• Plank thickness: 45 mm

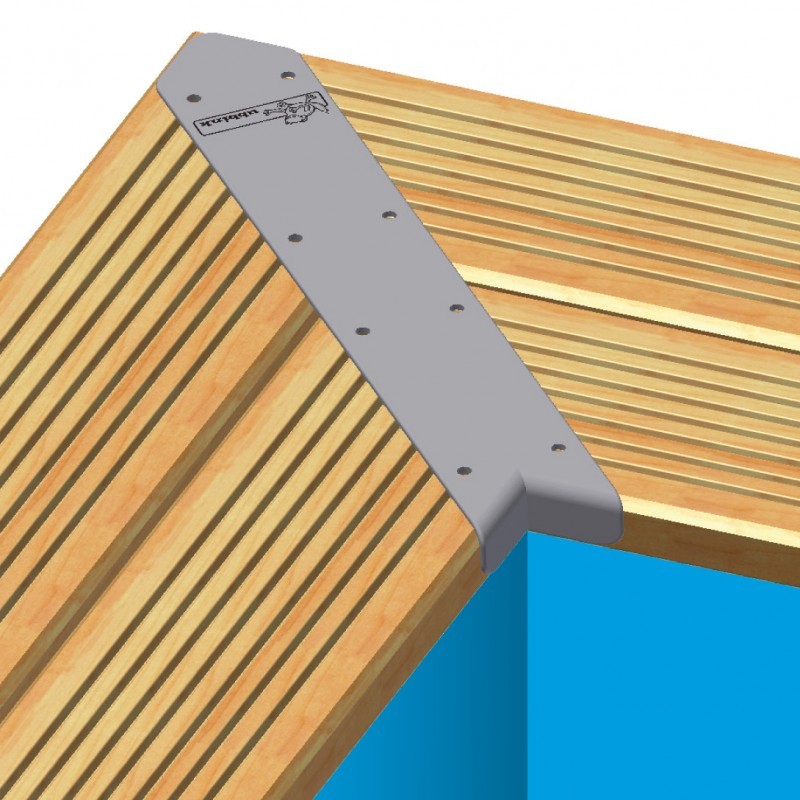

• Double Margelle Sapin du Nord, ep. 27 mm
• Outdoor wooden ladder 4 steps (removable)
• Stainless steel screws
• Margelle : Double margelle Sapin du Nord, ep. 27mm,- Wall thickness: 45mm,
• Liner 75/100 th
• Anti-bacterial background felt 200g/m²
• Wall felt 170g/m²
• Wall reinforcements included

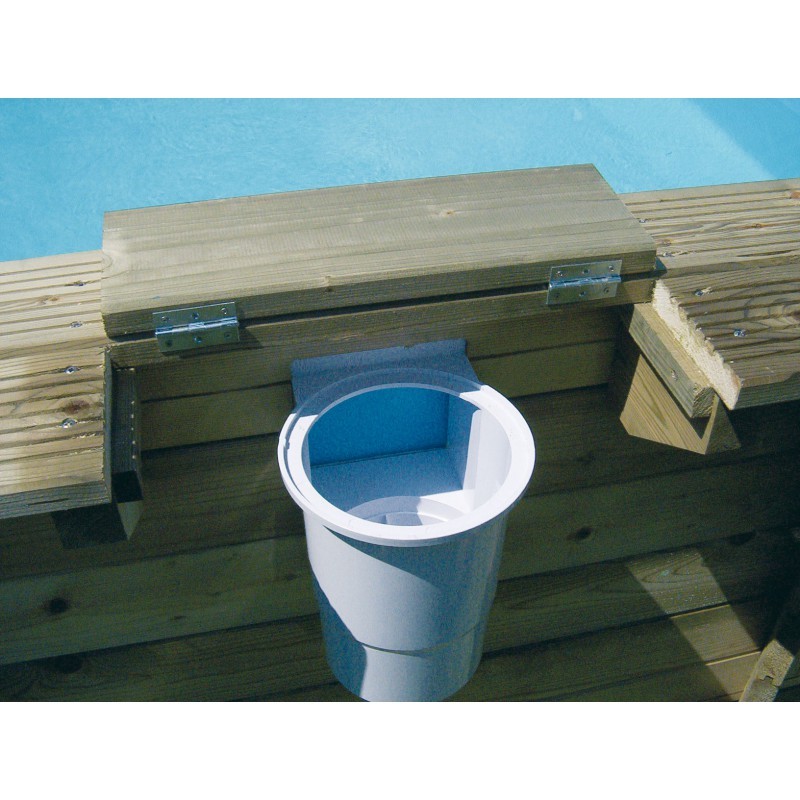

• 1 skimmer & 1 discharge nozzle

• Interior ladder Stainless steel 3 steps

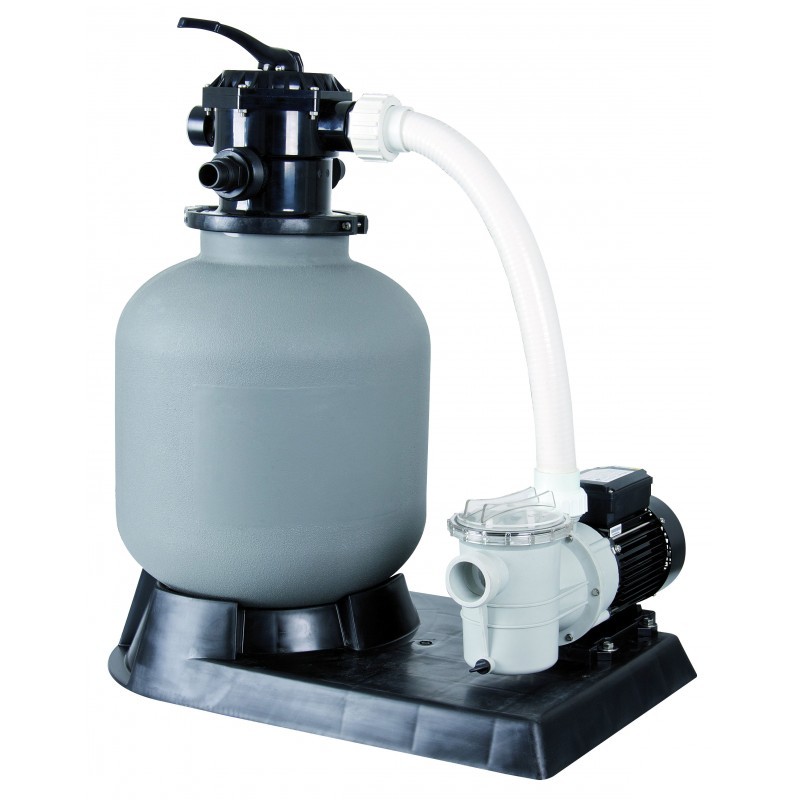

• Filter diameter: Ø 50 cm (19")
• Filter flow rate: max. 17 m3/h
• System pressure: max. 3.5 bar
• Filtration fineness: 28μm
• Silicafiltizing sand filter supplied - 0.40 – 1.25 mm
• Poolmax TP75 filtration pump
• Rated voltage/frequency: 230 VAC / 50 HZ
• Rated power: 0.75 HP / 0.56 kW
• Filtration unit flow rate 9.0 m3/h
• Plug with short circuit protection (DDR) 10 mA, IP54
• Packing: 2 packages, 750kgs,
• Wood frame warranty: 15 years against rotting and insect attacks.
• 2-year warranties: Filtration, Liner and accessories.

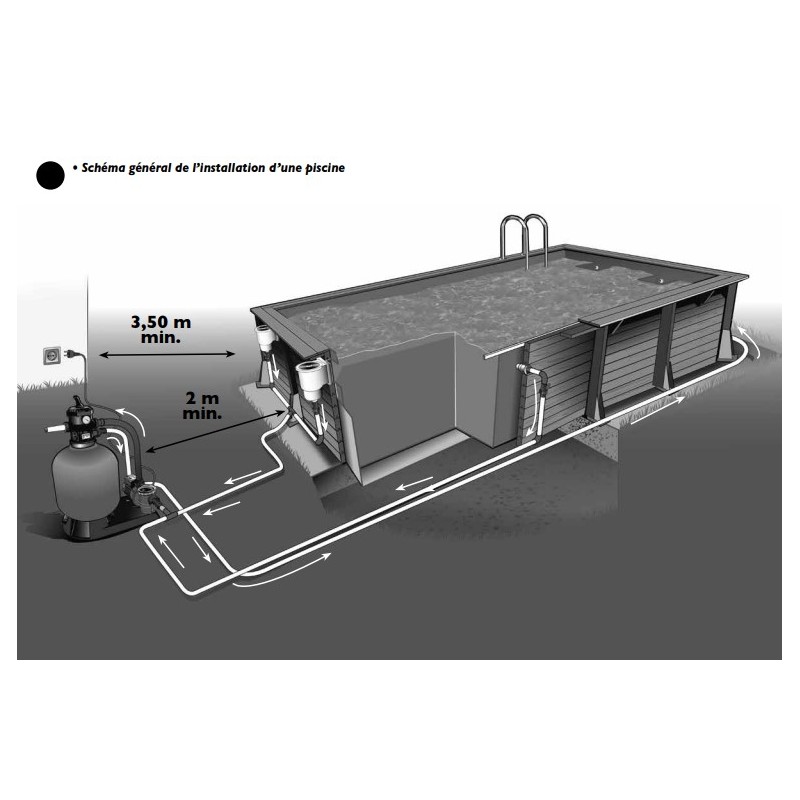

Installation recommendations:

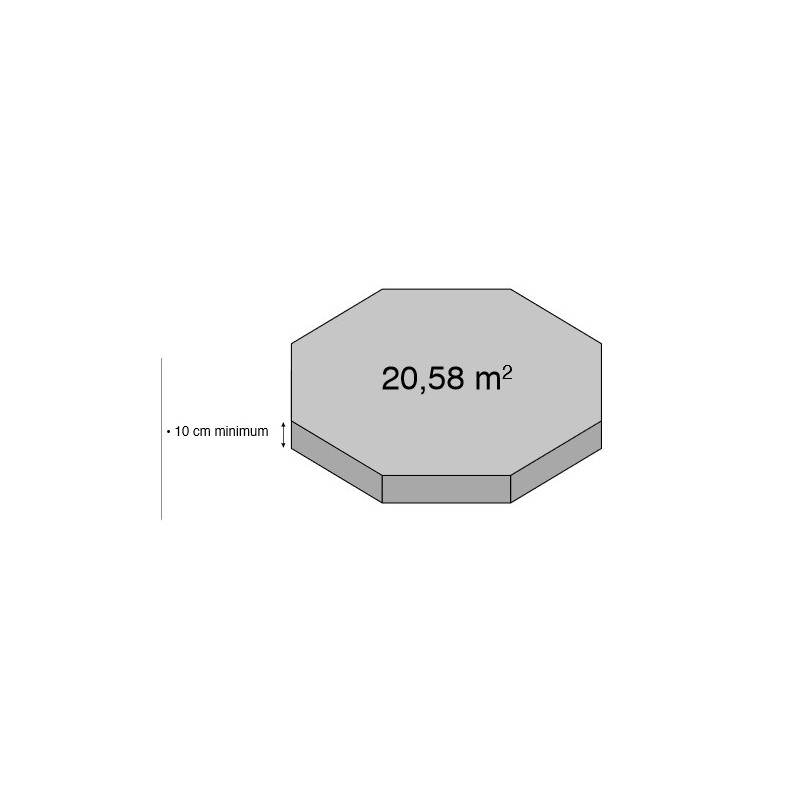

It is essential to define the location of your pool taking into account the exposure and the quality of the soil. You will have to be careful not to install the pool on unstabilized or recently backfilled ground. The manufacturer also advises you to make a concrete slab having previously upgraded the land.
In case of sloping terrain, it is imperative to unload it to level it. Do not backfill your land to level it.

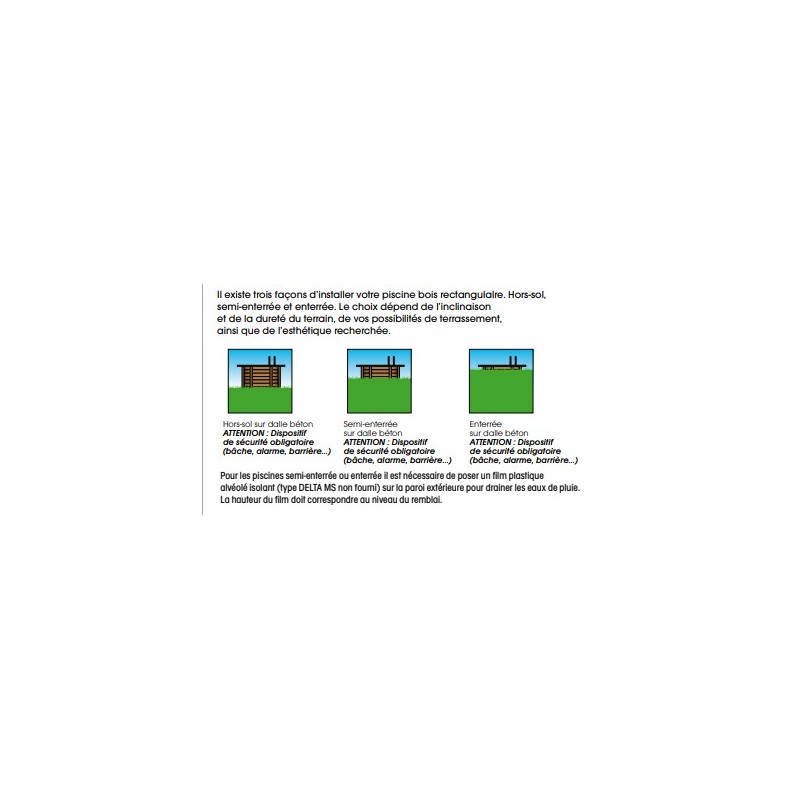

CAUTION: Place a high-density polyethylene growth sheet (not supplied) on the outer wall to drain rainwater. The height of the film must correspond to the level of the embankment. Without the presence of a draining tablecloth, the 15-year warranty covering the wooden structure may not be maintained by the manufacturer.

Assembly assistance and technical questions:
For any additional information or assistance during assembly, a support service is available from Monday to Saturday, from 9am to 6pm. The number will be communicated to you upon receipt of the order.
To ensure a simple and serene delivery, the carrier service will contact you to arrange an appointment according to your availability. On the day of delivery, the delivery person presents himself with a truck equipped with an on-board trolley in order to deposit the pool as close as possible to his place of installation.
If your home is difficult to access, do not hesitate to check in with our advisors to find the best delivery option. The seller can not be held responsible in case of inaccessibility of the home.

The delivery rate indicated is valid only for metropolitan France (excluding Corsica and islands).
We deliver on request all destinations in Europe and Switzerland (delivery rate on request depending on your geographical area).
