Sand Filter Pump 6m3-h PoolFilter 45m3 Ubbink

Sand Filter Pump 6m3-h PoolFilter 45m3 Ubbink.
The Ubbink PoolFilter 400 filtration unit offers a flow rate of 6 m3/h. It is specially adapted for the filtration of an above-ground pool thanks to the fittings supplied in Ø 38mm and 50mm. We recommend it for a swimming pool of 20 to 35 m3 of water volume.

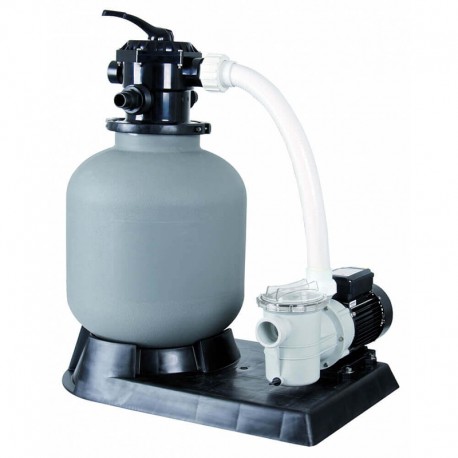

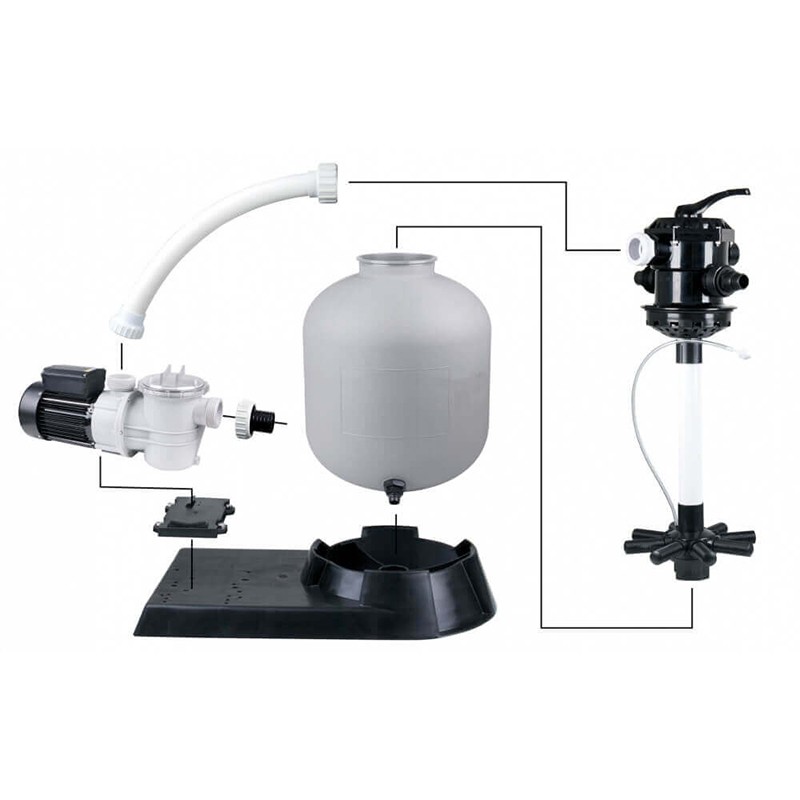

The Ubbink PoolFilter 400 filtration kit consists of an Ø 400 mm sand filter, a Poolmax TP50 filtration pump (0.5 hp) and a TOP 6-way valve. Filter media (sand/gravel or glass) is not provided.

Technical characteristics of the filtration unit:
Filtration pump Poolmax TP 50
Pool filtration pump with pre-filter
Max flow rate: 12,600 l/h
Rated power: 0.50 HP/0.37 KW
Protection: IPX5
Warranty: 2 years
Fitting included: 2 x D.38 mm + 2 x D.50 mm
Plug with short circuit current protection switch (DDR),30 ma, IP54,-25°c"
Sand filter:
Filter outer diameter: 400 mm (16")
Flow rate (water column 8 m): max. 6 m3/h
System pressure: max. 3.5 bar
Filling with filter silicalic sand (not supplied): max. 50 kg
Grain of sand (EN 12904:2005) 0.40 – 1.25 mm
6-way valve:
Suction and discharge fittings: 1 1/2"
Functions: Winter / Filtration / Washing / Rinsing / Circulation / Closed
Weight: 40 kg

Brand: Ubbink
The German brand Ubbink, created in 1896, provides you with the necessary solutions for your pool creations or your aquatic decorative atmospheres. Its robust and innovative products as well as its technological experience give it its leading position in Europe in the market for above-ground swimming pools and water features.
